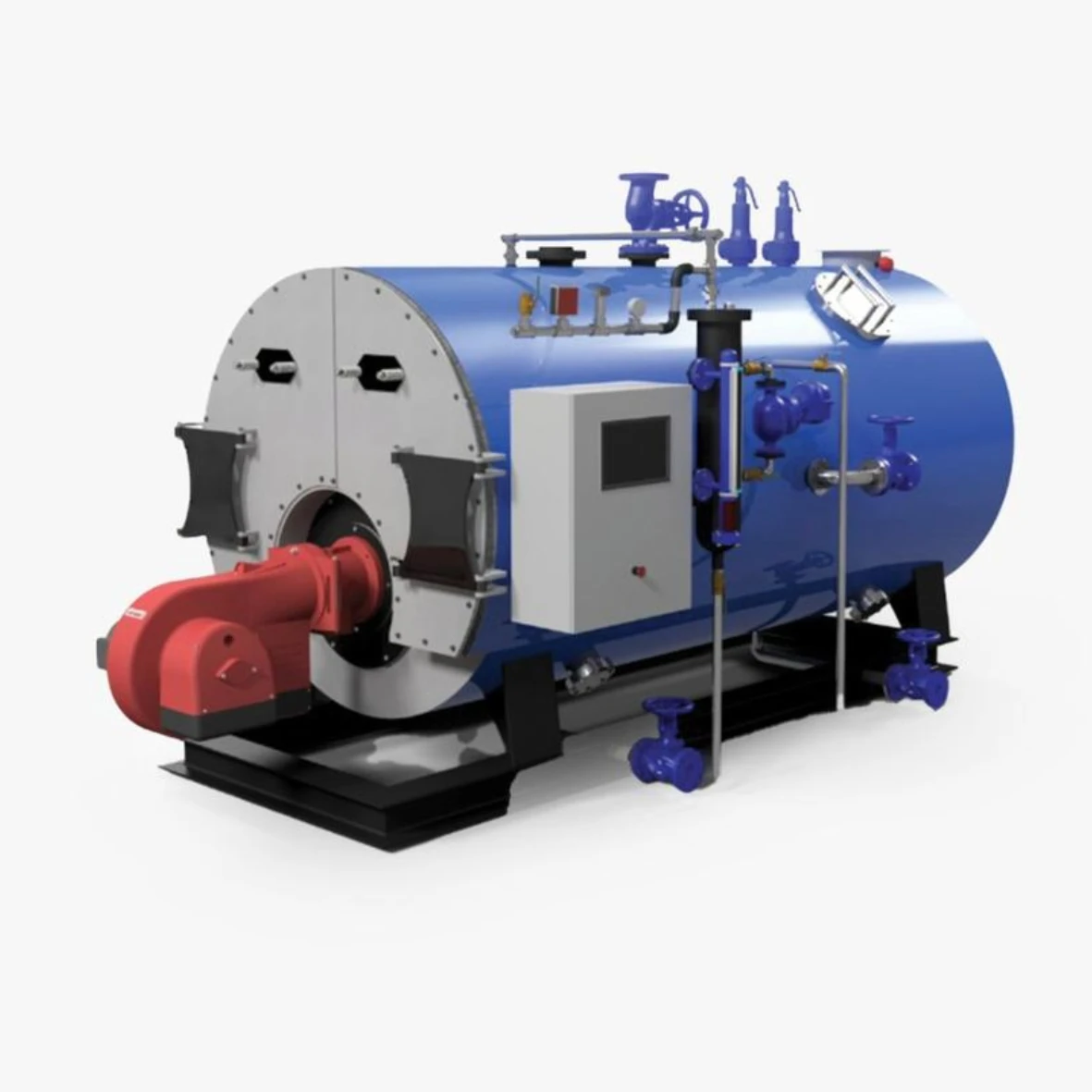

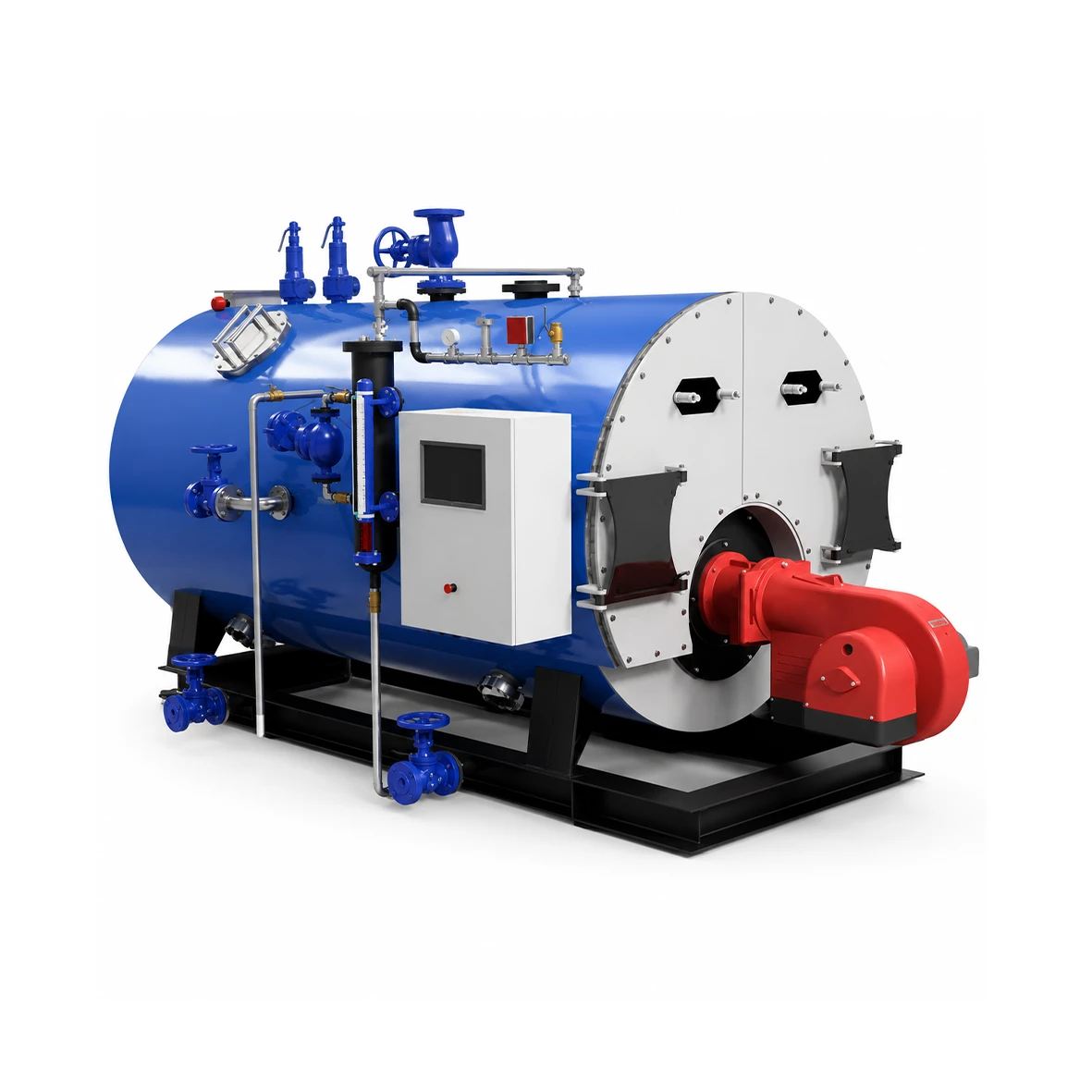

Steam boiler 400kg/h
The steam boiler is used to generate high-pressure steam for heating, boiling, cooking, sterilizing, or drying processes in industrial food production, providing a constant, reliable heat source for equipment such as cooking kettles, pasteurizers, dehydrators, and cleaning systems.
technical specifications
Steam Capacity: 400 kg/h (Rated Output)
-Boiler Type: Packaged Horizontal Fire-Tube Steam Boiler (Scotch/3-Pass Equivalent
Acceptable)
-Furnace & Tubes: Integrated Furnace and Fire Tubes Suitable for Continuous Operation
-Pressure Vessel Standard: Manufactured in Accordance with ASME or Equivalent
-Boiler/Pressure Vessel Standards with Nameplate and Full Compliance Documentation (Including Material Certificates and Hydro-Test Certificate)
-Construction Thickness: Outer Steel Thickness ≥ 8 mm, Inner Steel Thickness ≥ 10 mm (Bidder to Confirm Final Offered Thicknesses)
-Burner: Industrial-Grade Diesel Burner with Ignition Control Box and Flame Safeguard
-Feedwater System: Industrial-Grade Feedwater/Circulating Pump with Required Valves and Accessories
-Safety System: Safety Valve(s) Sized to Boiler Capacity, Pressure Gauge, Water Level Indicator(s), Low Water Cut-Off, Blowdown Valve(s), Over-Pressure and Over-Temperature Protection
-Controls: Electrical Control Panel with Protection Devices and Emergency Stop,
-Automatic Operating Sequence and Safety Interlocks
-External Finish: Stainless Steel Cladding/Jacketing for Corrosion Protection and
-Insulation Cover or Equivalent Durable Finish
-Boiler Type: Packaged Horizontal Fire-Tube Steam Boiler (Scotch/3-Pass Equivalent
Acceptable)
-Furnace & Tubes: Integrated Furnace and Fire Tubes Suitable for Continuous Operation
-Pressure Vessel Standard: Manufactured in Accordance with ASME or Equivalent
-Boiler/Pressure Vessel Standards with Nameplate and Full Compliance Documentation (Including Material Certificates and Hydro-Test Certificate)
-Construction Thickness: Outer Steel Thickness ≥ 8 mm, Inner Steel Thickness ≥ 10 mm (Bidder to Confirm Final Offered Thicknesses)
-Burner: Industrial-Grade Diesel Burner with Ignition Control Box and Flame Safeguard
-Feedwater System: Industrial-Grade Feedwater/Circulating Pump with Required Valves and Accessories
-Safety System: Safety Valve(s) Sized to Boiler Capacity, Pressure Gauge, Water Level Indicator(s), Low Water Cut-Off, Blowdown Valve(s), Over-Pressure and Over-Temperature Protection
-Controls: Electrical Control Panel with Protection Devices and Emergency Stop,
-Automatic Operating Sequence and Safety Interlocks
-External Finish: Stainless Steel Cladding/Jacketing for Corrosion Protection and
-Insulation Cover or Equivalent Durable Finish
