Pneumatically operated dosing units
All dosing syringes in the Doselite and Dosamatic Plus range can be moved pneumatically and integrated into automated packaging lines.

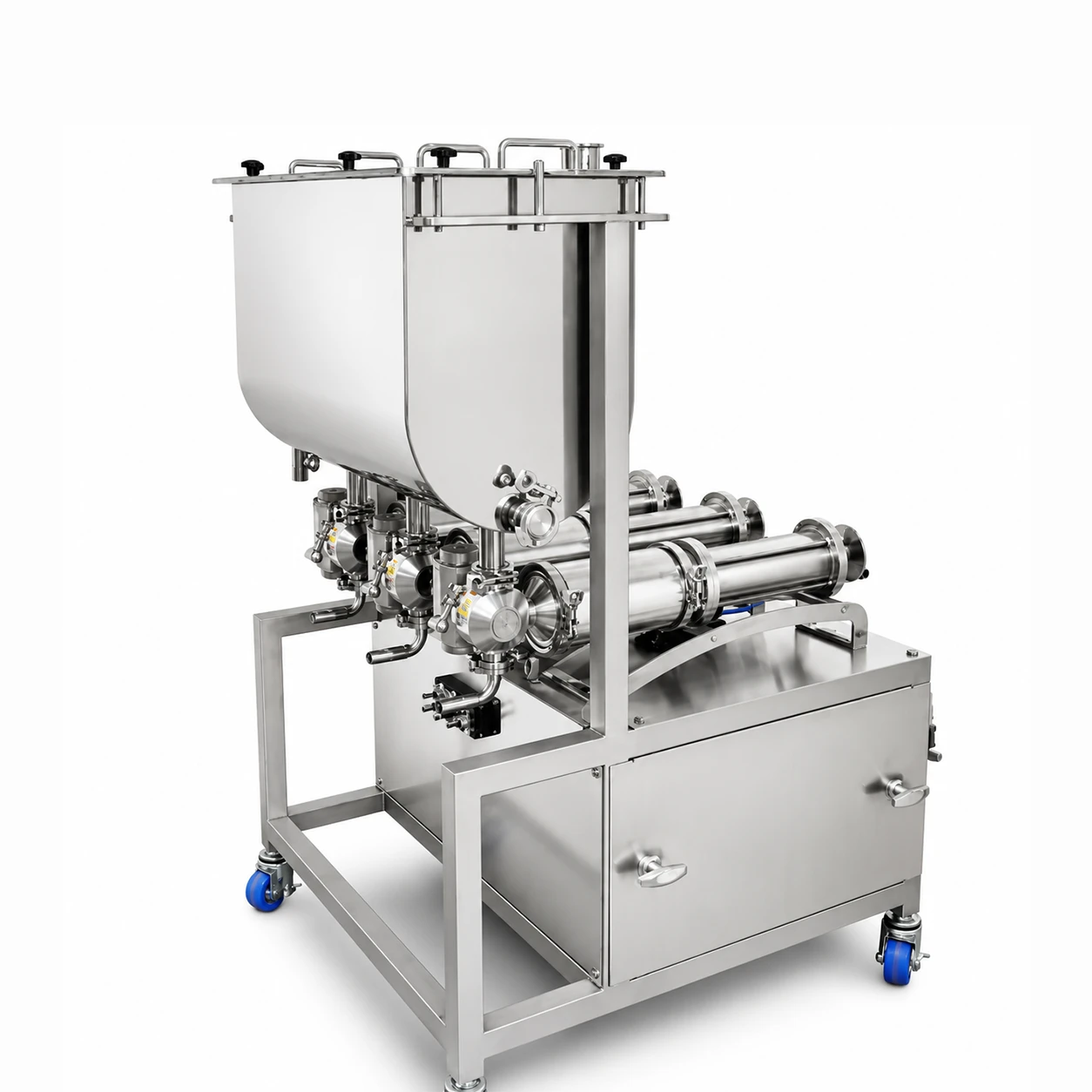

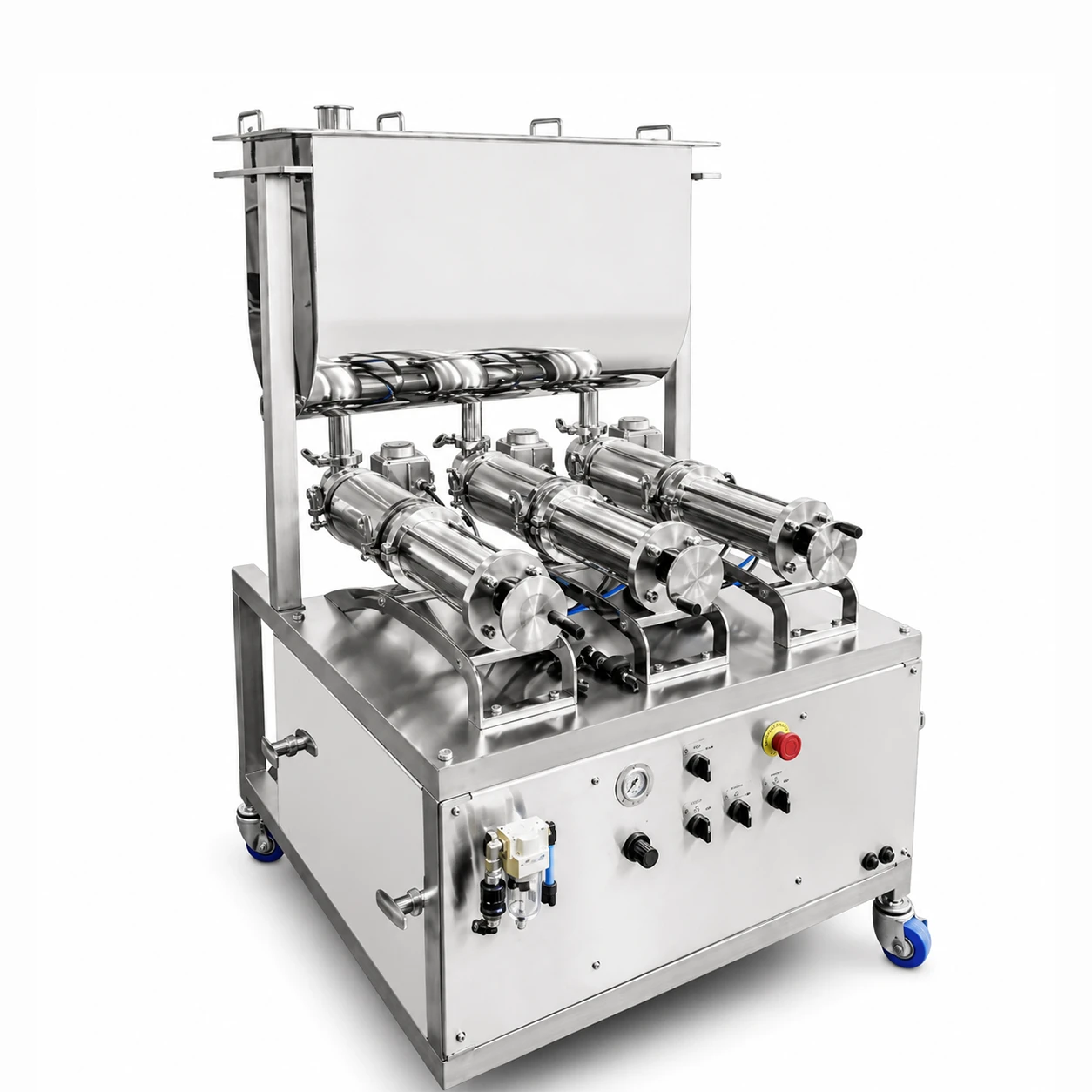

We manufacture single dosing syringes or multi-head dosing groups with a single pneumatic actuator for the simultaneous movement of multiple product syringes.
The pneumatic dosing syringes are operated by compressed air, the dosage is adjusted via a handwheel with a graduated scale.
TECHNICAL SPECIFICATIONS
Pneumatic power supply
Other specifications
-Parts in contact with the product in AISI 316L stainless steel
-Removable product shirt with tri-clamp connections
-Piston in AISI 316L, detachable and mirror polished
-Product side seals in PTFE energized with stainless steel spring or in HPU
-Pneumatic cylinder with bore 50, 80 or 100 mm, with adjustable stroke with magnet
-Volume adjustment via handwheel with 4-digit mechanical indicator
-2 end-of-stroke sensors (suction and dosing) with clean electrical signal
Other specifications
-Parts in contact with the product in AISI 316L stainless steel
-Removable product shirt with tri-clamp connections
-Piston in AISI 316L, detachable and mirror polished
-Product side seals in PTFE energized with stainless steel spring or in HPU
-Pneumatic cylinder with bore 50, 80 or 100 mm, with adjustable stroke with magnet
-Volume adjustment via handwheel with 4-digit mechanical indicator
-2 end-of-stroke sensors (suction and dosing) with clean electrical signal
CONFIGURATIONS
The dispensers are available in different sizes, each optimized for a specific volume range:
-from 0 to 12 ml (micro doses)
-from 1 to 38 ml
-from 2 to 100 ml
-from 5 to 260 ml
-from 10 to 380 ml
-from 20 to 680 ml
-from 50 to 1300 ml
-from 80 to 1500 ml
-from 100 to 2000 ml
-from 200 to 5000 ml
Free positioning
-(to be installed on lines or on trolleys)
-from 0 to 12 ml (micro doses)
-from 1 to 38 ml
-from 2 to 100 ml
-from 5 to 260 ml
-from 10 to 380 ml
-from 20 to 680 ml
-from 50 to 1300 ml
-from 80 to 1500 ml
-from 100 to 2000 ml
-from 200 to 5000 ml
Free positioning
-(to be installed on lines or on trolleys)
