Manual labeling machine

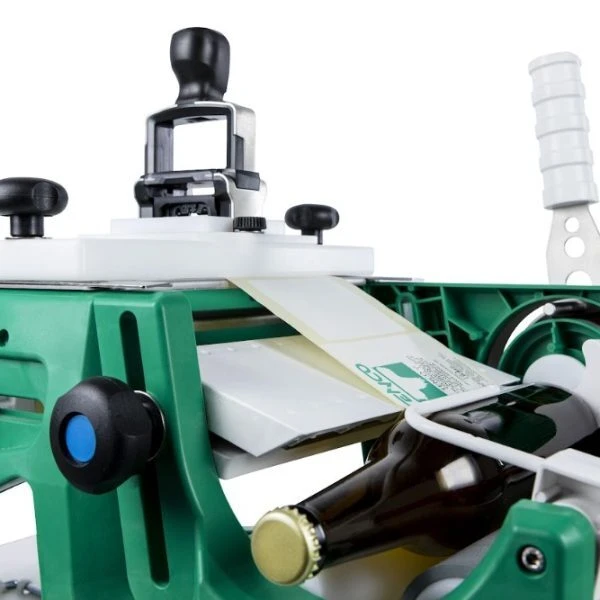

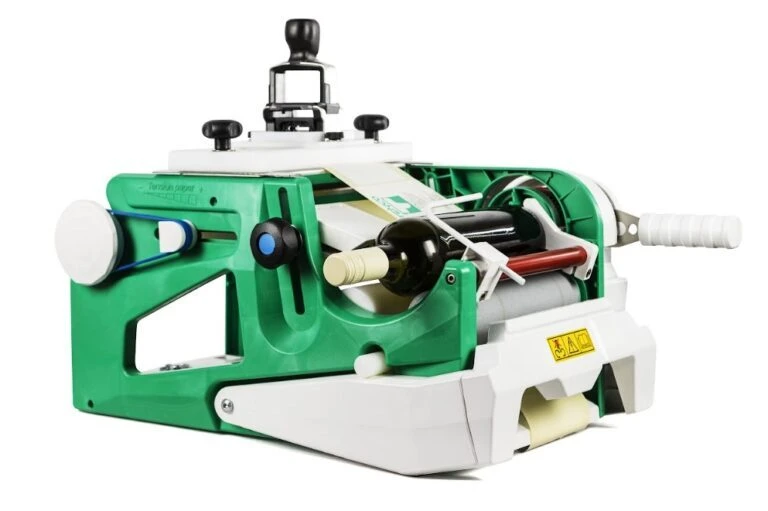

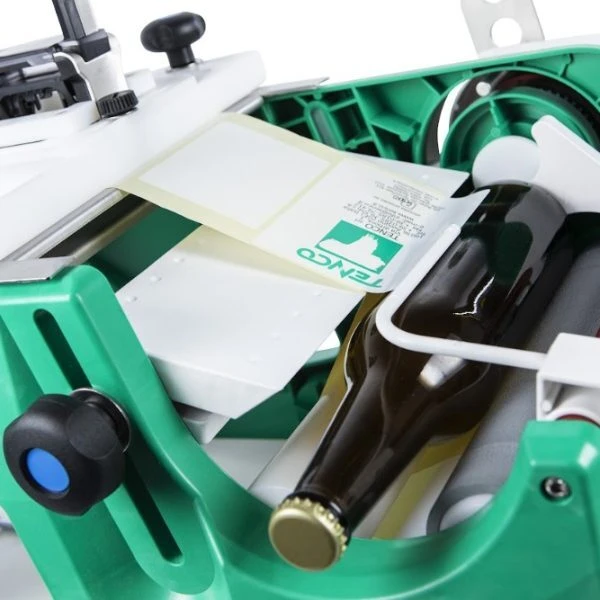

Manual labeling machine for applying self-adhesive labels to bottles and cylindrical containers. Simple, manual adjustments. By adjusting the lever's operating angle, you determine the length of the label to be peeled, up to a maximum of 170 mm in a single operation. The label peeling blade's inclination can be adjusted based on the bottle's diameter.
TECHNICAL SPECIFICATIONS
Production
-approximately 300 p/h
Labelable containers
-Cylindrical bottles in glass, PET and rigid plastic
Minimum bottle diameter
-50 mm
Maximum bottle diameter
-120 mm
Manual feeding
Dimensions
-54 x 37 x 41 h
Weight
-12 kg
Coil external diameter
-250 mm
Label spacing
-5/10 mm
Front label exit direction
Maximum label height
-165 mm
Maximum label width
-200 mm
Maximum coil height
-170 mm
-approximately 300 p/h
Labelable containers
-Cylindrical bottles in glass, PET and rigid plastic
Minimum bottle diameter
-50 mm
Maximum bottle diameter
-120 mm
Manual feeding
Dimensions
-54 x 37 x 41 h
Weight
-12 kg
Coil external diameter
-250 mm
Label spacing
-5/10 mm
Front label exit direction
Maximum label height
-165 mm
Maximum label width
-200 mm
Maximum coil height
-170 mm
CONFIGURATIONS
Available accessory kits
-Ink marker
-Ink marker
