M2R

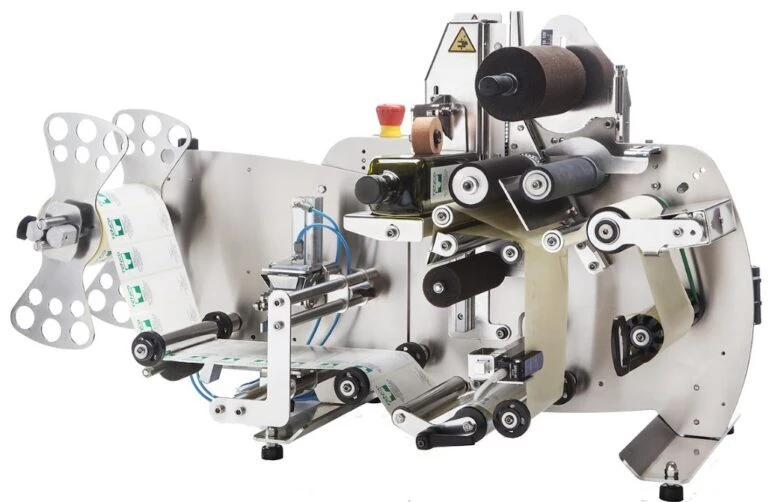

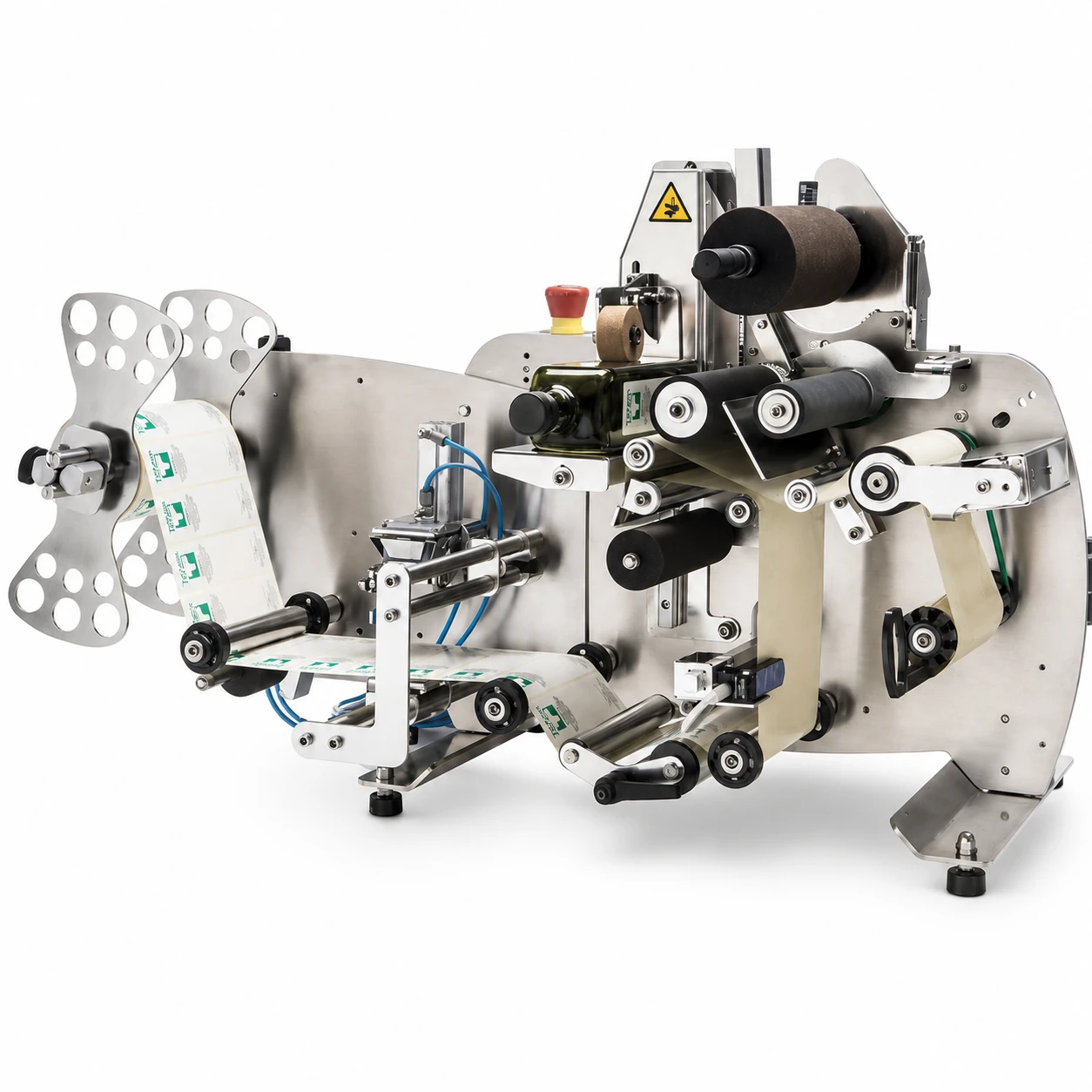

M2R semi-automatic labelling machine equipped with a single labelling station, suitable for applying a single label (or label and backing with a mixed roll) on cylindrical formats. By installing some accessories, the machine is able to label even small cylindrical formats, square or rectangular bottles, apply wrap-around or semi-wrap-around labels, print the production batch and/or the expiry date with the addition of the marker.

TECHNICAL SPECIFICATIONS

Production
-on cylindrical bottles up to 600 b/h
-on square bottles with front and back label up to 300 b/h
Labelable containers
-Cylindrical, square and rectangular bottles in glass, PET and rigid plastic
Minimum bottle diameter
-25 mm
Maximum bottle diameter
-160 mm
Power supply
Dimensions
-620 x 360 x 530 mm H
Weight
-25 kg
Maximum bobbin diameter
-280mm
Internal coil diameter
-76 mm
Maximum paper support height
-170 mm
Minimum distance between labels
-3 mm
Compressed air consumption
-10 Nl / min only with marker
Available voltages
-240V – 50 Hz
-110V 60 Hz

CONFIGURATIONS

Available accessory kits
-accessory for labelling square bottles (square label up to 60 mm wide)
-extra stroke supplement for square bottle accessory (for applying square labels with a maximum width of 100 mm)
-thermal transfer marker
-supplement for cylindrical bottles with a diameter of up to 160 mm
-supplement for 210 mm paper passage for cylindrical bottles
-supplement for 210 mm paper passage for square bottles
-ultrasonic sensor for transparent labels
-customised support for shaped bottles
