Flowmatic

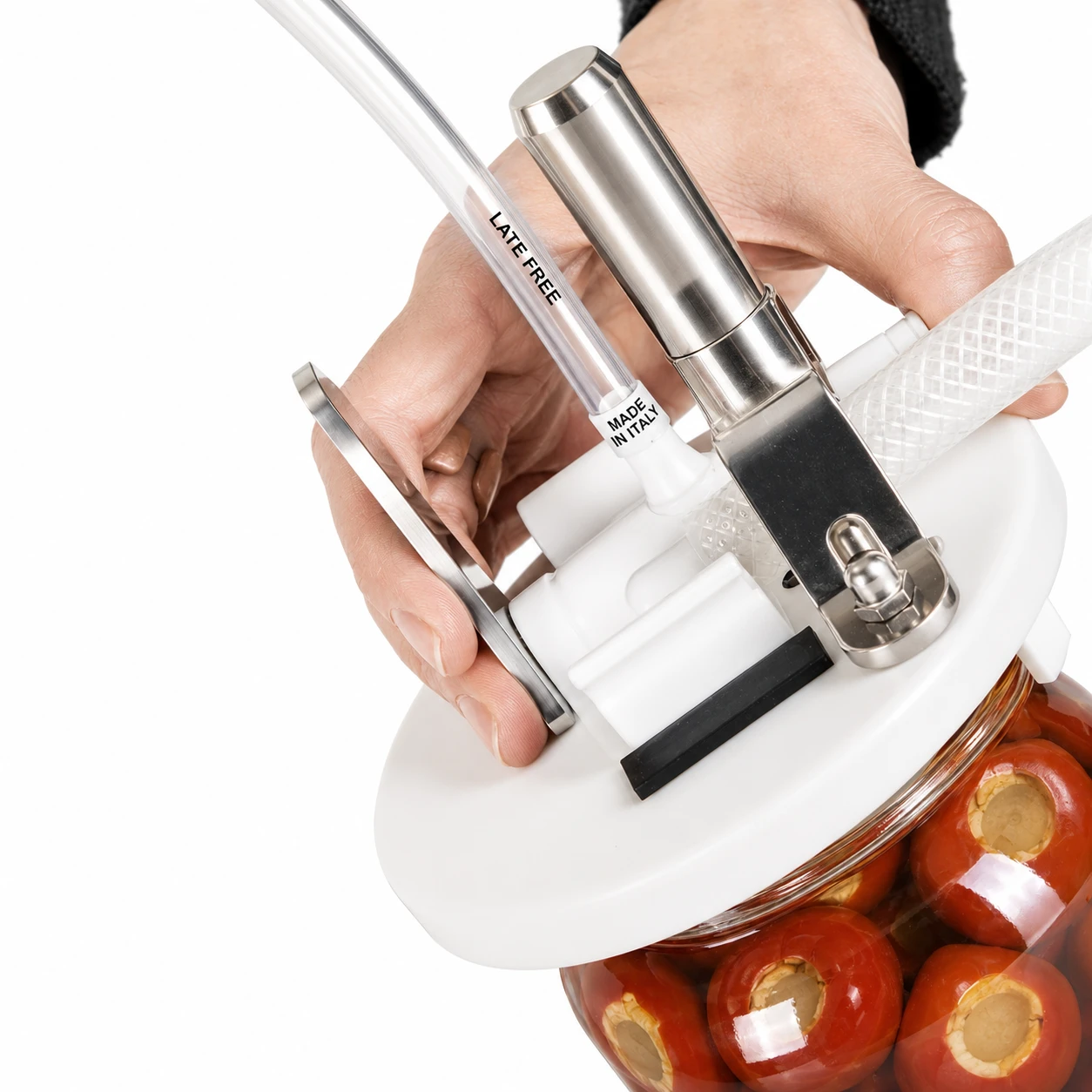

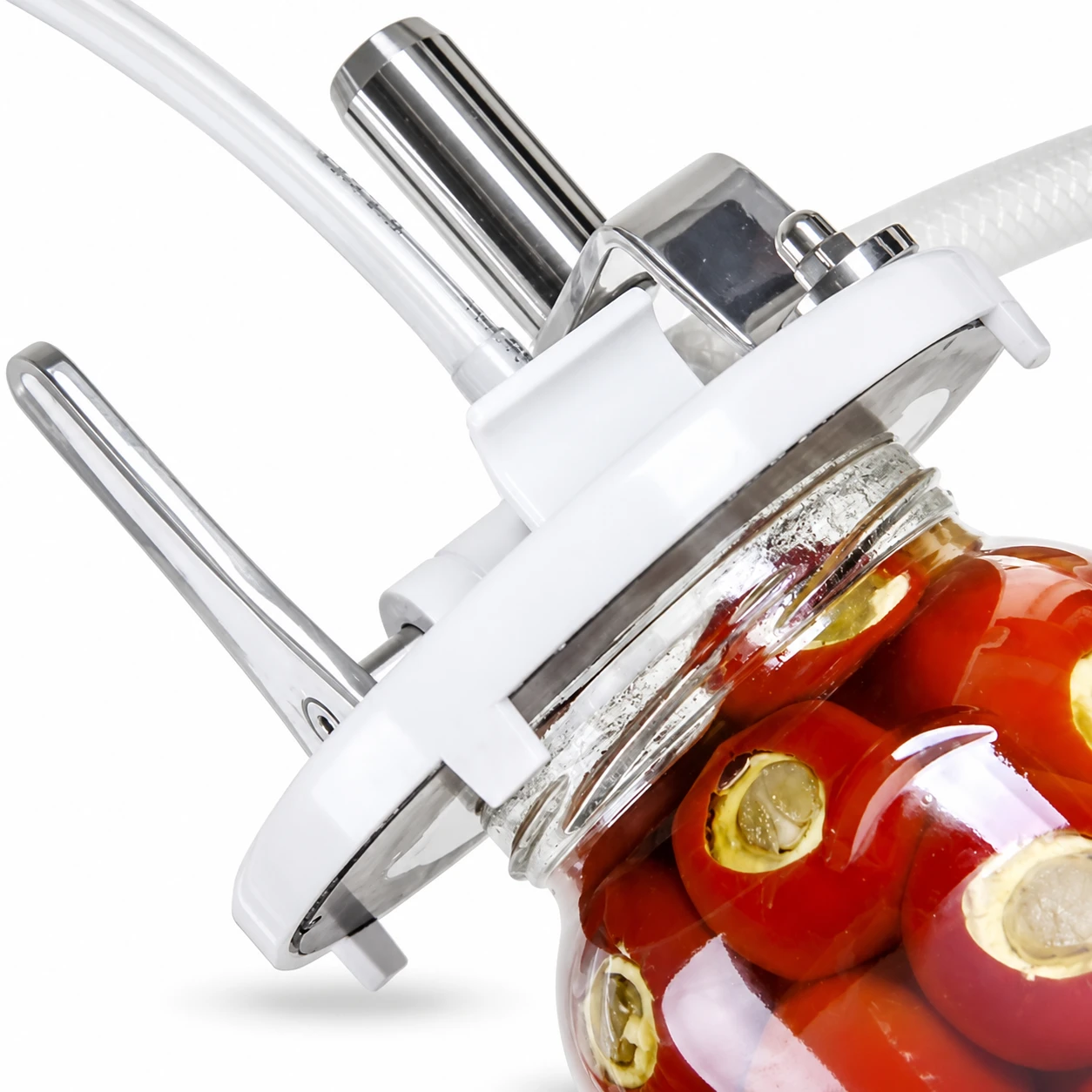

Flowmatic is a bench-top vacuum-level filler for preserving liquids in glass jars. It features a 230V single-phase electric vacuum pump. One filling head made of food-grade plastic and AISI 316 stainless steel is included in the supply. The plastic spout for bottling glass bottles is not included in the supply.

CONFIGURATIONS

Nozzle configurations
-plastic nozzle for wine
-plastic nozzle for oil
-short plastic nozzle for beer
-kristal plastic nozzle for bottles with long and narrow necks
-plastic nozzle for mini bottles
-plastic nozzle with milk cone (for bottles with twist-off cap necks)
-316L stainless steel nozzle for wine
-316L stainless steel nozzle for oil
-316L stainless steel nozzle for beer
-316L stainless steel nozzle for mini bottles
-316L stainless steel nozzle with milk cone (for bottles with twist-off cap necks)
Positioning
-bench-top
Number of nozzles
-1

TECHNICAL SPECIFICATIONS

Production
-about 200 jars per hour (300 ml jars)
Minimum jar neck inner diameter
-35 mm
Maximum jar neck outer diameter
-115 mm
Power supply
-electric
Voltages
-220/230V – 50 Hz
-220V – 60 Hz
-110V – 60 Hz
-240V – 50 Hz
Dimensions
-20 x 40 x 40 h
Weight
-4.5 kg
