Flexflow

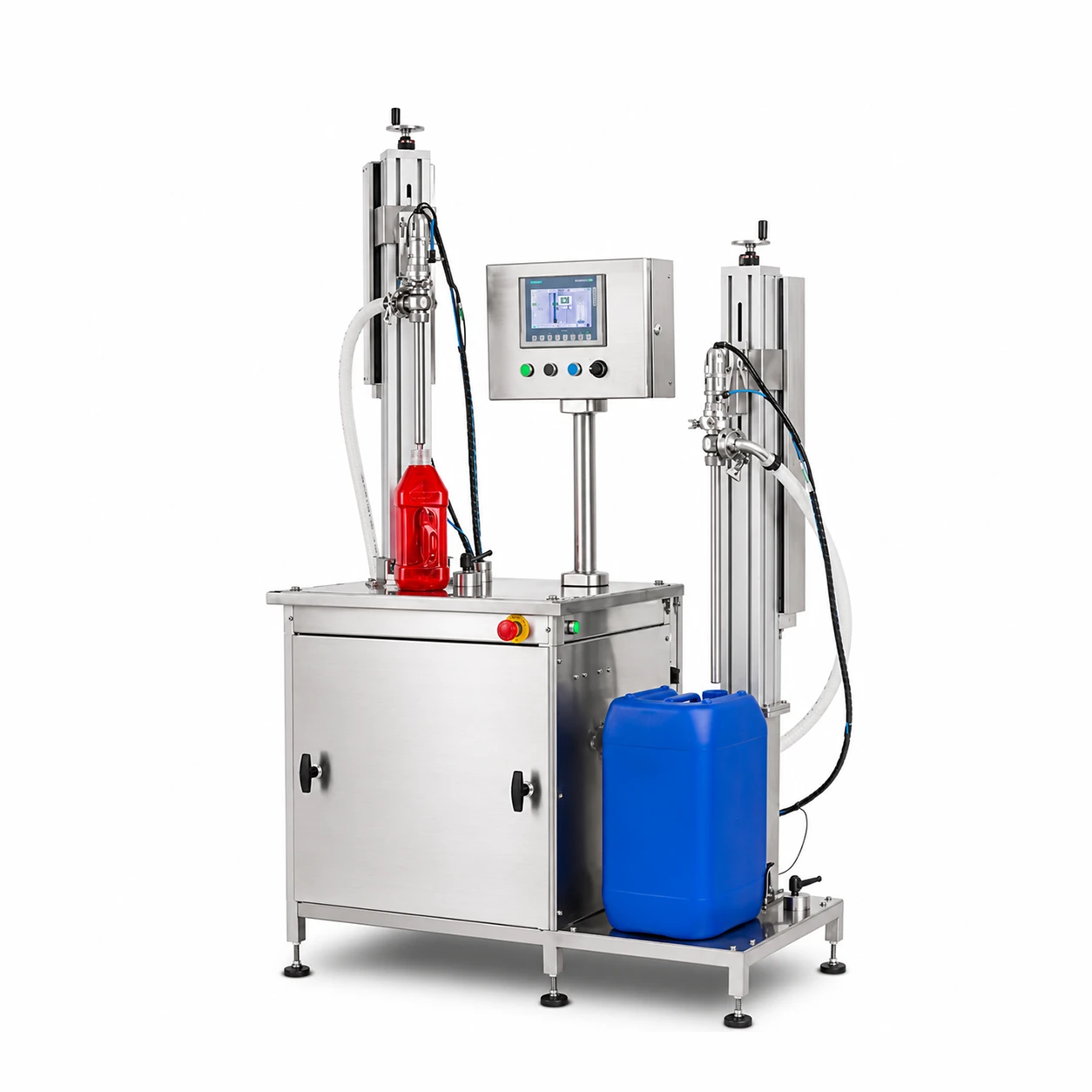

Flexflow – data sheet Flow meter dosing machine with screw electric pump. Particularly suitable for managing a wide dosing range, especially for filling high-capacity containers. The bottom-up filling system makes it ideal for dosing even foamy products. Available with double or single dosing station, depending on production needs.

TECHNICAL SPECIFICATIONS

Power supply
-electro-pneumatic
Minimum dosage
-500 ml
Dimensions
-1200 x 780 x 1950 H
Weight
-250 kg
Voltage
-220V 50 Hz
Maximum bottle height
-500 mm
Minimum bottle height
-150 mm
Maximum air consumption at 6 bar
-70 l/min

CONFIGURATIONS

Available models
-single station version
-double station version
-single station version with diving nozzles (bottom-up filling system)
-double station version with diving nozzles (bottom-up filling system)
Positioning
-trolley-mounted
