Easycap

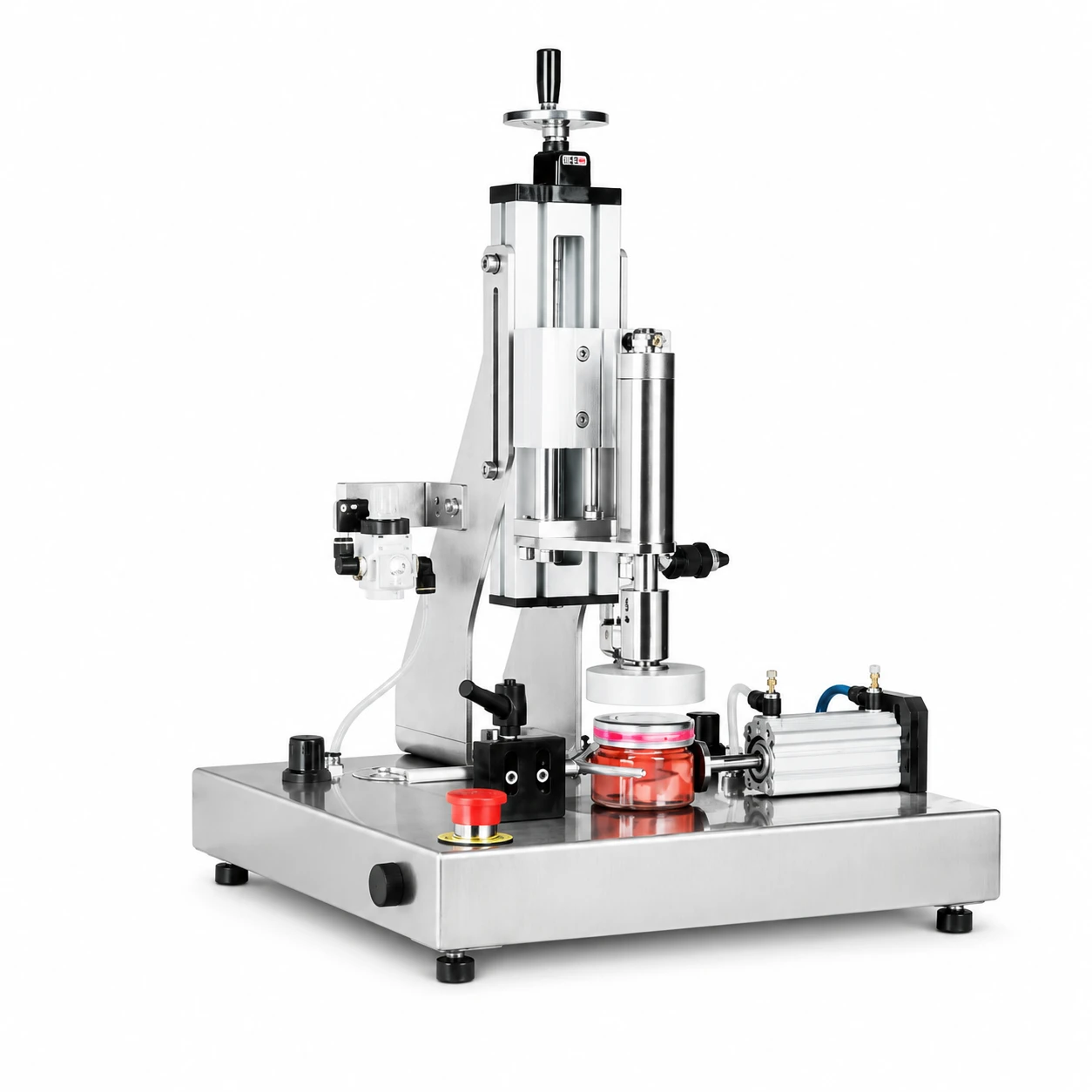

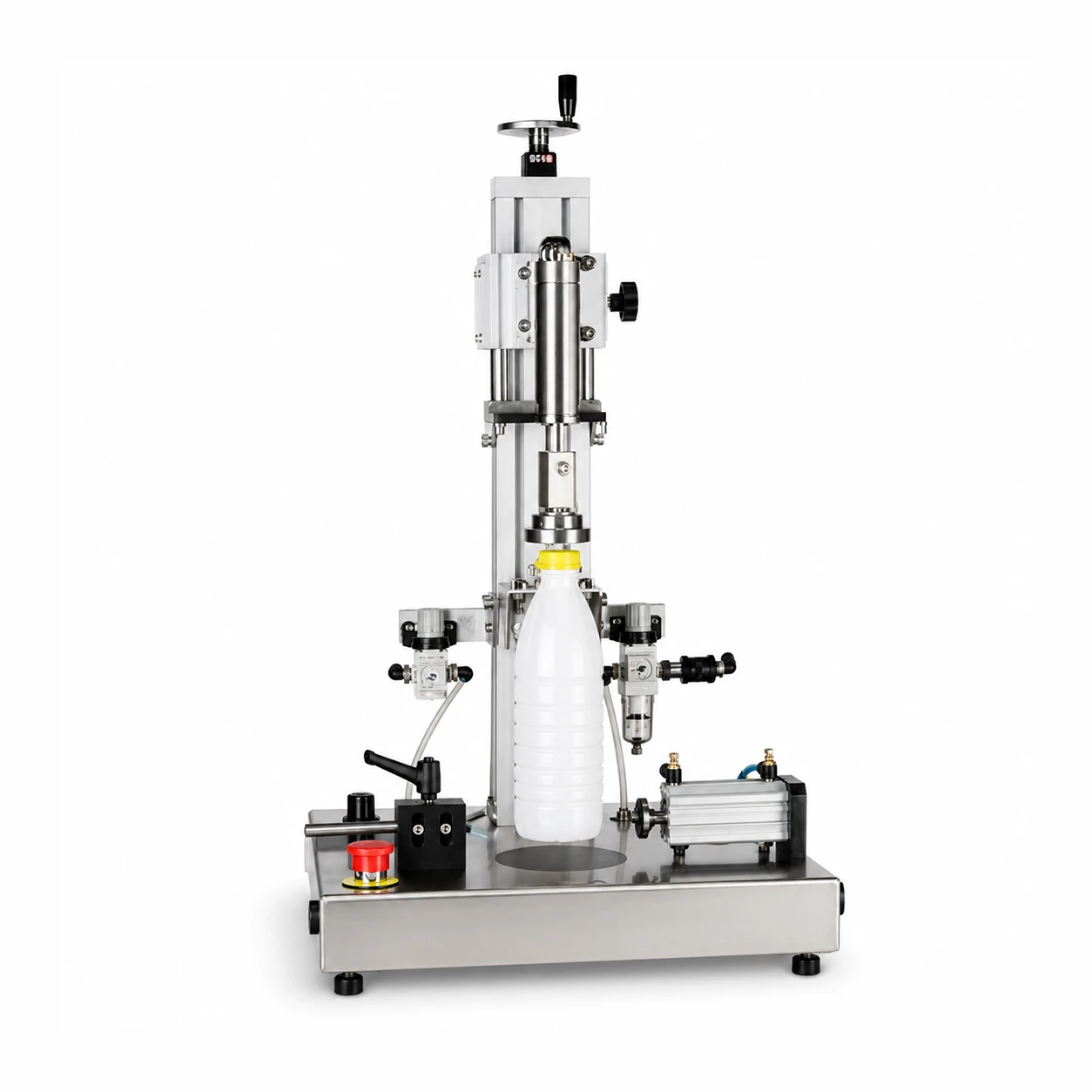

The pneumatic capping machine EASYCAP is a versatile and compact solution, designed to ensure the safe and efficient closing of a wide range of containers with Twist Off caps or plastic screw caps. Thanks to its fully pneumatic operation and bench-top design, EASYCAP offers high production flexibility, allowing the handling of different cap sizes and types. It is the ideal choice for small and medium-sized producers looking for a reliable solution for automated capping.

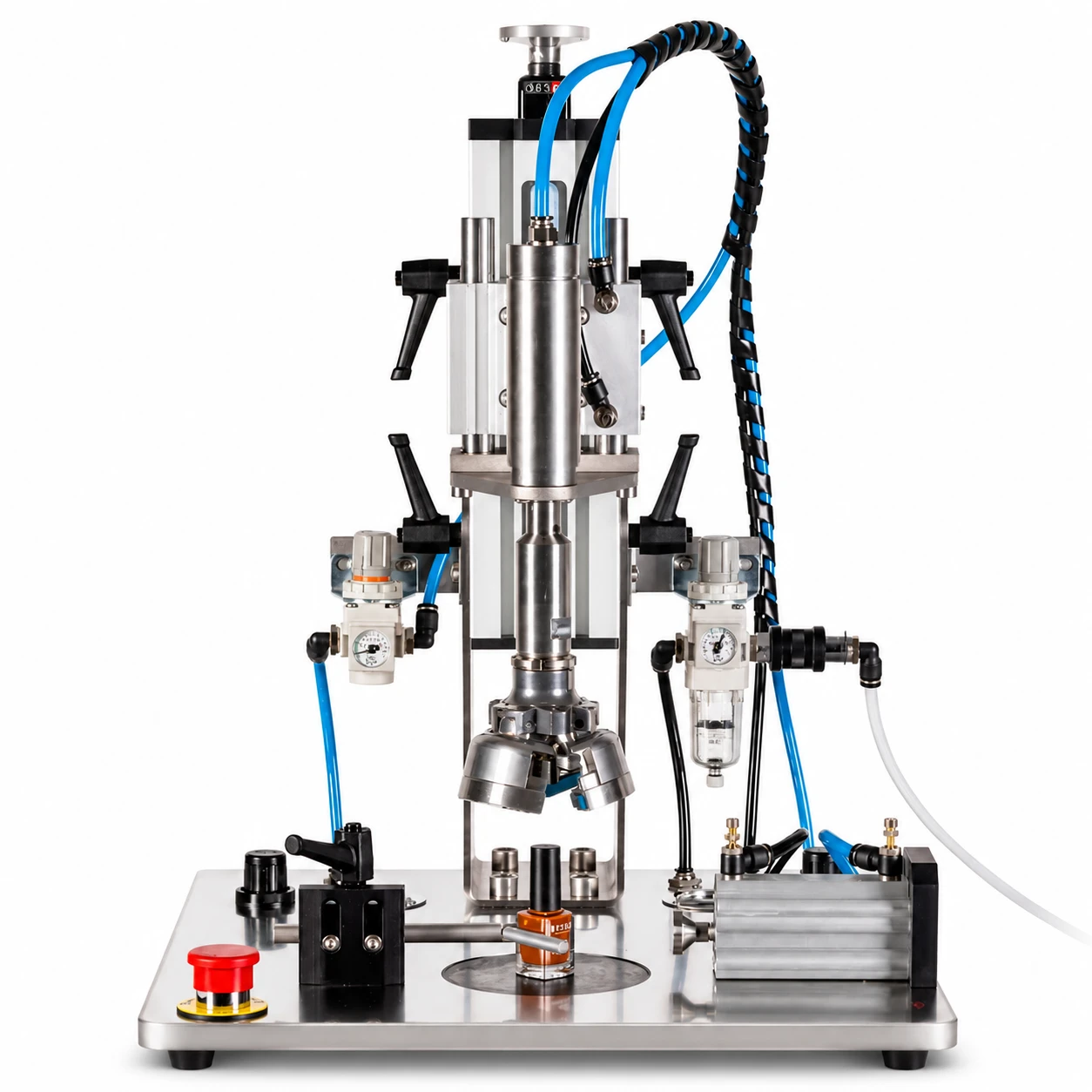

The bench-top pneumatic capping machine Easycap can also be equipped with a mechanical chuck for closing caps with brush applicators, such as those used for nail polish, gel, and other nail products. Easy to use, simple to adjust, and compact in size, it is the practical and high-performing solution for capping jars, bottles, and many other types of containers.
TECHNICAL SPECIFICATIONS
Production
-about 600 p/h
Dimensions
-472 x 450 x 675 h
Weight
-30 Kg
Air supply pressure
-2-6 bar
Torque
-from 1.5 N/m to 7 N/m
-Air consumption at 6 bar
-450 l/min
-Air consumption at 3 bar
-240 l/min
Maximum bottle height
-40 mm
-Minimum bottle height
-350 mm
Power supply
-pneumatic
-about 600 p/h
Dimensions
-472 x 450 x 675 h
Weight
-30 Kg
Air supply pressure
-2-6 bar
Torque
-from 1.5 N/m to 7 N/m
-Air consumption at 6 bar
-450 l/min
-Air consumption at 3 bar
-240 l/min
Maximum bottle height
-40 mm
-Minimum bottle height
-350 mm
Power supply
-pneumatic
CONFIGURATIONS
Twist Off chucks available
twist off standard and twist off deep in the following sizes
-38 mm
-43 mm
-48 mm
-53 mm
-58 mm
-63 mm
-66 mm
-70 mm
-77 mm
-82 mm
-100 mm
-110 mm
Millerighe chucks for plastic screw caps available sizes
-for closing plastic screw caps with a diameter up to 50 mm
-for closing plastic screw caps with a diameter between 50 and 60 mm
-for closing plastic screw caps with a diameter between 60 and 70 mm
-for closing plastic screw caps with a diameter between 70 and 80 mm
-for closing plastic screw caps with a diameter over 80 mm
twist off standard and twist off deep in the following sizes
-38 mm
-43 mm
-48 mm
-53 mm
-58 mm
-63 mm
-66 mm
-70 mm
-77 mm
-82 mm
-100 mm
-110 mm
Millerighe chucks for plastic screw caps available sizes
-for closing plastic screw caps with a diameter up to 50 mm
-for closing plastic screw caps with a diameter between 50 and 60 mm
-for closing plastic screw caps with a diameter between 60 and 70 mm
-for closing plastic screw caps with a diameter between 70 and 80 mm
-for closing plastic screw caps with a diameter over 80 mm
