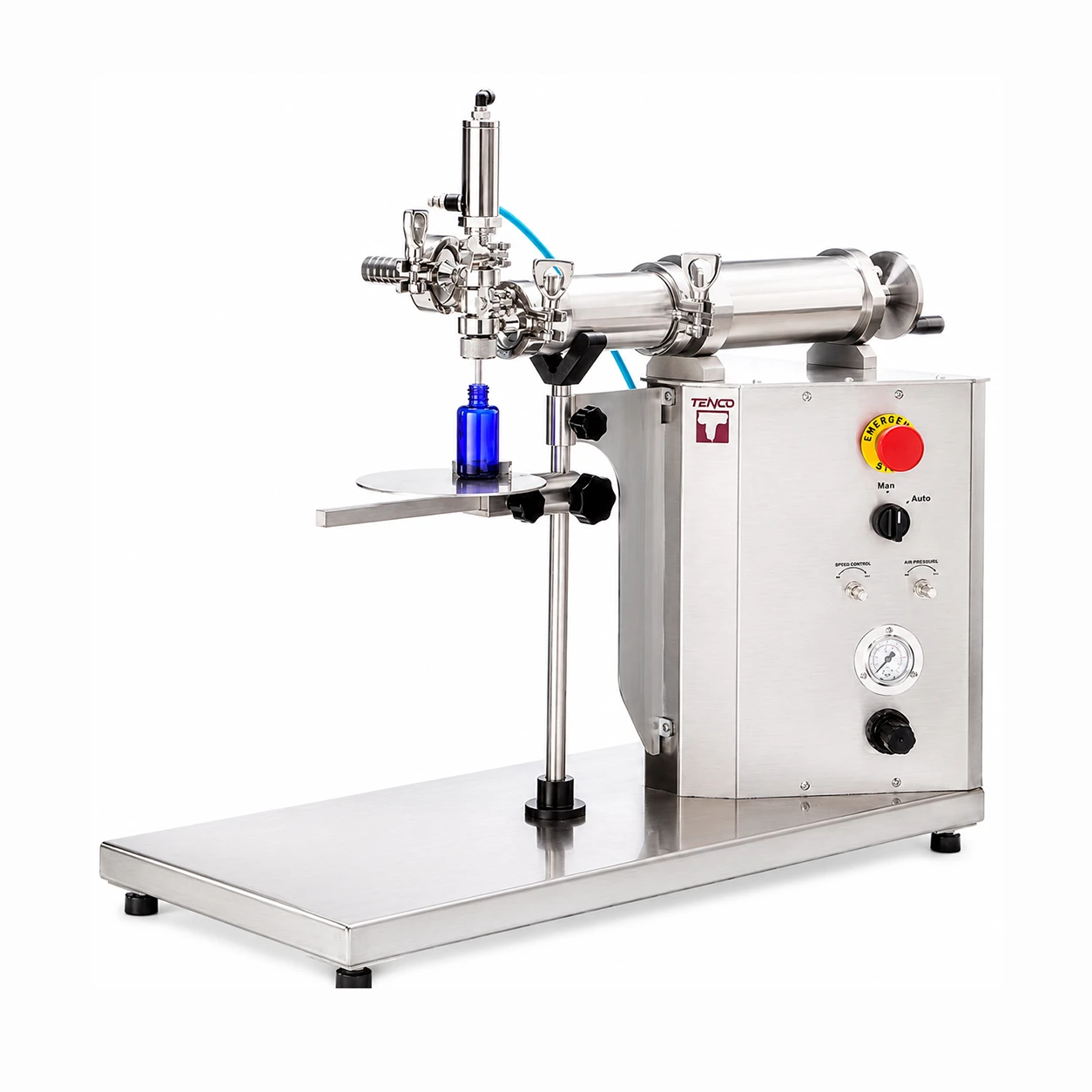

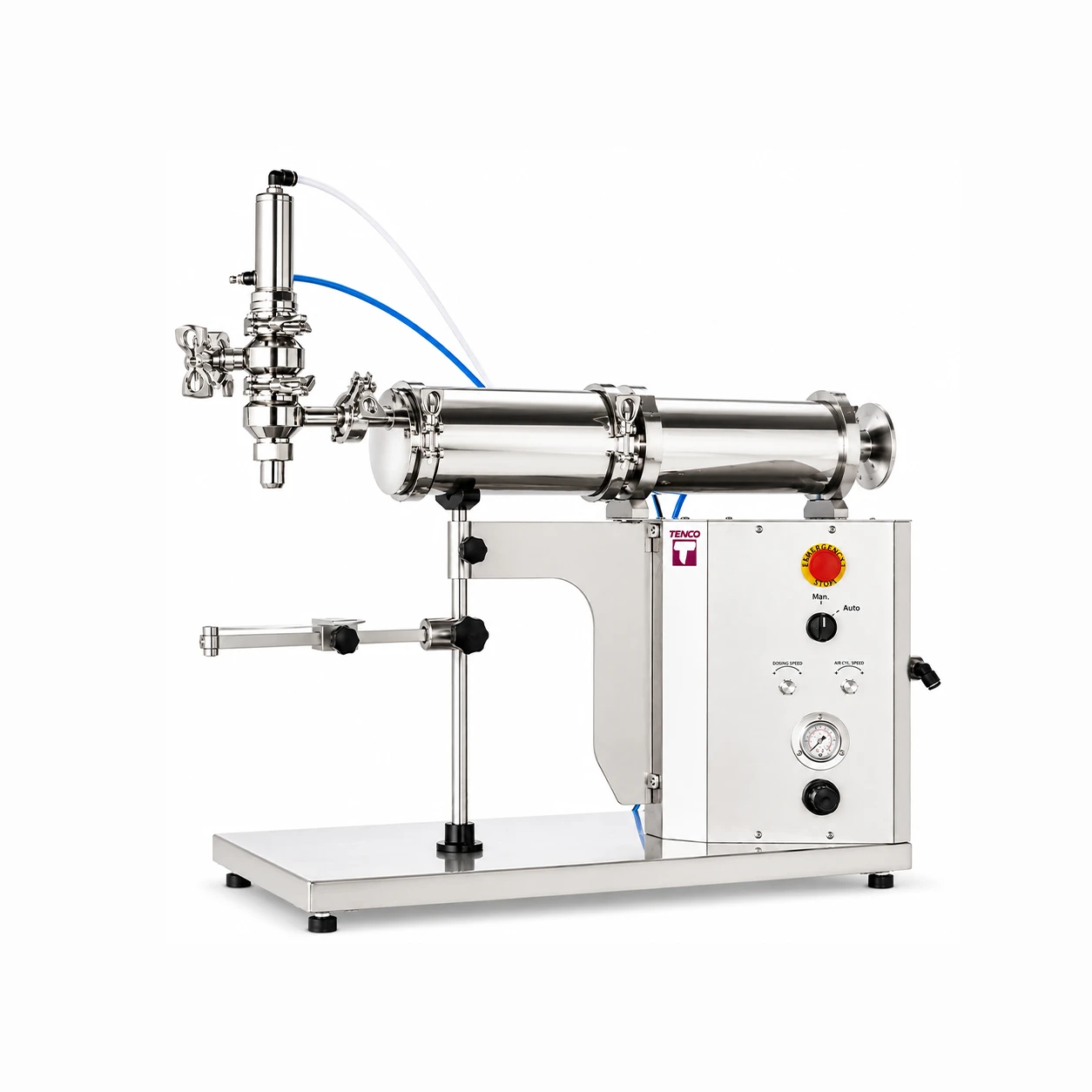

Doselite
Doselite is a line of highly precise, reliable, and easy-to-use pneumatic volumetric dosing machines for filling liquid, semi-dense, and even very dense products, with or without suspended particles, in any type of container. Doselite dosing pumps offer: Extreme precision in dose repeatability Versatility: All parts in contact with the product are made of AISI 316L stainless steel; they are therefore suitable for use in the food sector, for the packaging of sauces, jams, pesto, ragù, yogurt, mayonnaise, ketchup, and in general for pet food in cream or sauce form; in the chemical sector, for the packaging of solvents, paints, varnishes, pastes, resins, glues; in the cosmetics and herbal fields for the packaging of creams, perfumes, nail polishes and gels, shampoos, scrubs, oils, masks, liquid foundations, mascara, lip gloss; and in the pharmaceutical sector for the packaging of creams, syrups, liquid and dense preparations for pharmaceutical and veterinary use. Wide range of controls that allow you to check and intervene on pressure, temperature, delivery speed and suction speed. Flexibility and ease of use , specific materials and certifications, make the Doselite range the most suitable and professional solution for any packaging line. All Tenco dispensing syringes can be moved pneumatically or via brushless motors, the latter ensuring even greater dispensing precision and seamlessly integrating into automated production lines. Doselite models can also be customized to meet specific needs, with a base for benchtop or trolley positioning with the dispensing pump positioned above or below, or integrated into automated packaging lines. The dispensing pistons can also be equipped with heating elements to maintain the product at a predefined temperature and can be combined with simple loading hoppers, heating units, mixers, or pressing systems to facilitate the suction of the product being dispensed. Ultimately, each machine can be configured to best suit the user's specific needs.

TECHNICAL SPECIFICATIONS

Production rate
-approximately 350/400 jars per hour (production varies depending on the type of product and the operator's speed)
Maximum air consumption at 6 bar:
-30 l/m for the 40 cc, 100 cc and 250 cc models;
-90 l/m for the 380cc, 680 cc and 1300 cc models
Pneumatic power supply
Dimensions
-model 40 cc 780 X 326 X 515 mm h
-model 100 cc 780 X 326 X 515 mm h
-model 250 cc 780 X 326 X 515 mm h
-model 380 cc 846 X 326 X 565 mm h
-model 680 cc 846 X 326 X 565 mm h
-model 1300 cc 846 X 326 X 565 mm h (in the bench version)
-trolley version: 813 X 500 X 1300 h (all versions)
Weight of
-benchtop models: 25 kg (for the 40 – 100 and 250 cc models)
-380 – 680 and 1300 cc models: 35 kg
-Wheeled model: 50 kg all sizes
Operating pressure
-4-6 bar

CONFIGURATIONS

Available Models – Dosing Range
-Micro-cylinder up to 12 cc
-0-40 cc
-2 to 100 cc
-5 to 250 cc
-5 to 380 cc
-20 to 680 cc
-50 to 1300 cc
-50 to 1500 cc
Positioning
-on a bench
-on a low trolley
-on a high trolley
Gasket kits available
-PTFE Food Grade
-HPU and PTFE Food Grade
-HPU Food Grade
-PTFE
-PTFE and EPDM
Accessories (sold separately)
-3-way dispensing valves
-2-way non-drip valves
-feed
-hoppers anti-foam
-nozzles stainless steel clamps
-flexible feed hoses food product dispenser
-flexible feed hoses hot product feed
-hoses chemical product feed hoses
-solvent product feed hoses
-stainless steel fittings
-2-way steel non-return valves
-2-way plastic non-return valves
Available kits (purchased separately)
-Anti-drip kit
-Gasket kit for food products
-Gasket kit for chemical/cosmetic products
-Gasket kit for solvent-based products
-Bottom filling nozzle
-kit Hopper mixing system
-kit Dosing heating system
-kit Hopper heating system kit
-Valve heating system
-kit Pipe heating system
-kit Anti-foam device
-kit Hopper pressing system kit
