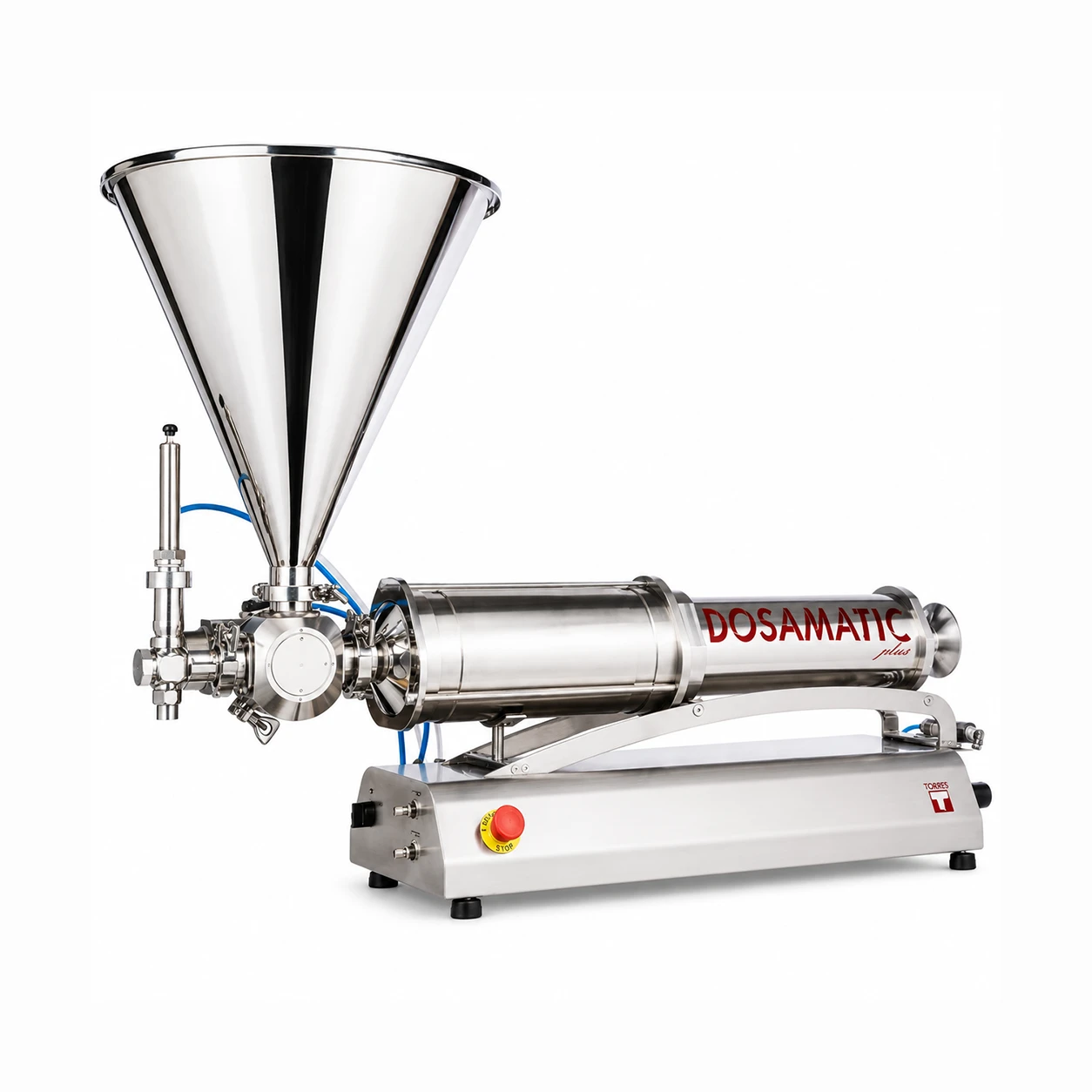

Dosamatic Plus
Pneumatically operated volumetric dosing machines, extremely precise, reliable and easy to use, for packaging liquid, semi-dense and even very dense products, with or without suspended particles, in any type of container.
TECHNICAL SPECIFICATIONS
Production rate
-approximately 350/400 jars per hour (production varies depending on the type of product and the operator's speed)
Max air consumption at 6 bar
-157.5 Nl/m
Pneumatic power supply
Dimensions
-300 x 1100 x 400h (countertop version)
-1100 x 500 x 1300 (trolley version)
Weight
-60 kg (bench version)
-80 kg (trolley version)
Operating pressure
-4 – 6 bar
-approximately 350/400 jars per hour (production varies depending on the type of product and the operator's speed)
Max air consumption at 6 bar
-157.5 Nl/m
Pneumatic power supply
Dimensions
-300 x 1100 x 400h (countertop version)
-1100 x 500 x 1300 (trolley version)
Weight
-60 kg (bench version)
-80 kg (trolley version)
Operating pressure
-4 – 6 bar
CONFIGURATIONS
Available models – dosage range from
-100 to 5000 cc
Positioning
-on bench
-on trolley
Gasket kits available
-in food-grade PTFE
-HPU and food-grade PTFE
-HPU
-PTFE
-PTFE and EPDM
-100 to 5000 cc
Positioning
-on bench
-on trolley
Gasket kits available
-in food-grade PTFE
-HPU and food-grade PTFE
-HPU
-PTFE
-PTFE and EPDM
