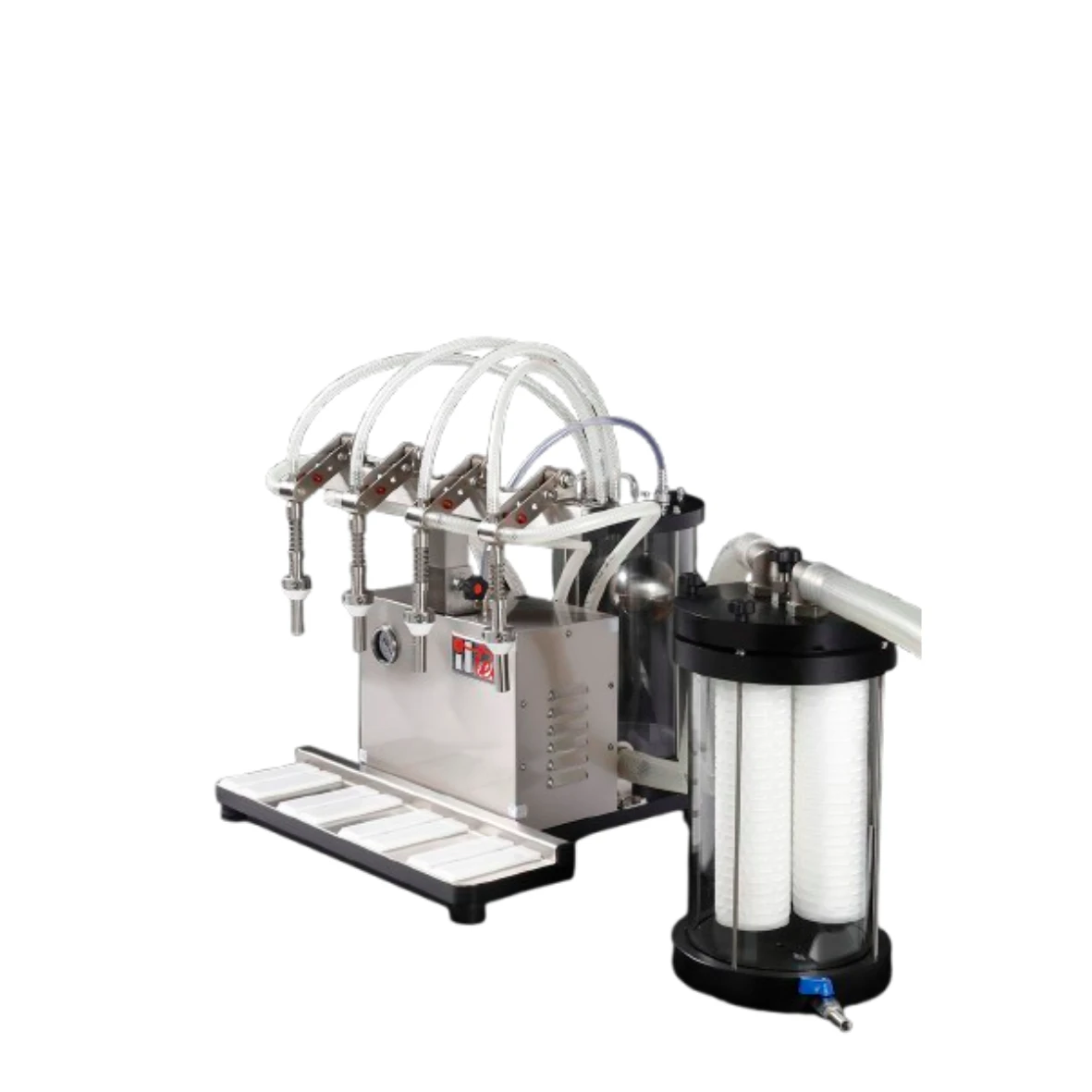

4-Head Filler Machine (For Liquids)
The vacuum filler is made entirely of stainless steel, has a PYREX tank and four highly efficient and precise stainless steel filling nozzles.
When the bottle is placed under the 4 head filler, the fluid is sucked in by the vacuum created inside, without any contact between the liquid and the pumps or mechanical components.
Technical Specifications
• Filling material: Intended for viscous liquids, tomato sauce and other liquids.
• Automatic grade: Adjustable filling level with automatic stop.
• Material: Stainless steel Base, Frame & Nozzles
• Replaceable nozzles
• Gas spring comfortable height adjustment.
• Vacuum gauge.
• Completely accessible & cleanable liquid system.
• Compact design.
• Dimensions: Approx. 550*500 mm
• Motor capacity: 0.75 Kw.
• Capacity (1hour): approx. 1200 bottles per hour
• Bottleneck internal diameter: 16-34 mm
• Bottle height: 180-350 mm
• Filling capacity (ml): 50~5000ml.
• Material: Stainless steel Base, Frame & Nozzles
• Replaceable nozzles
• Gas spring comfortable height adjustment.
• Vacuum gauge.
• Completely accessible & cleanable liquid system.
• Compact design.
• Dimensions: Approx. 550*500 mm
• Motor capacity: 0.75 Kw.
• Capacity (1hour): approx. 1200 bottles per hour
• Bottleneck internal diameter: 16-34 mm
• Bottle height: 180-350 mm
• Filling capacity (ml): 50~5000ml.
